Water Filter & Membrane Performance Monitoring

Frequently Asked Questions

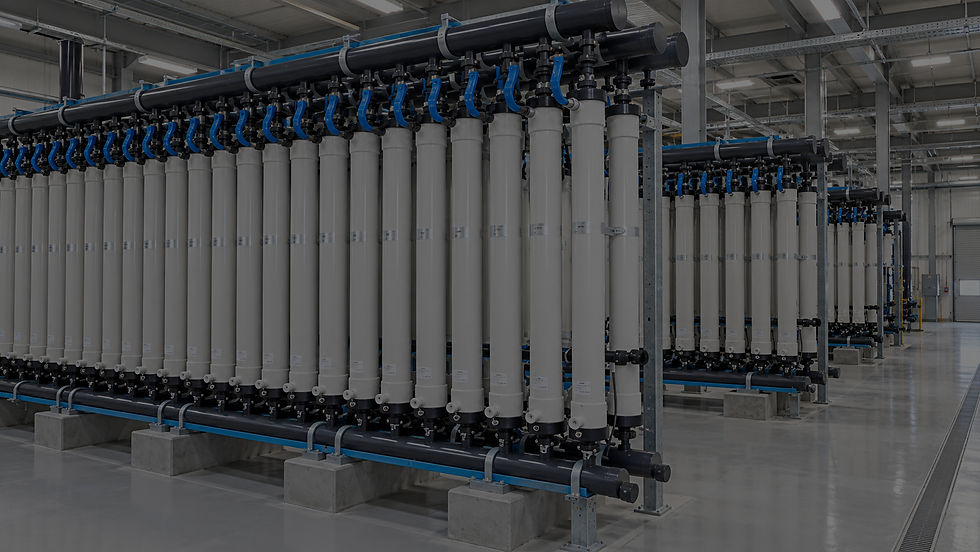

How does the PM-F-W compute Transmembrane Pressure (TMP) across ultrafiltration and reverse osmosis skids?

Transmembrane Pressure (TMP) represents the net directional force pushing water through a semi-permeable membrane barrier. The PM-F-W uses a piezoresistive dual-port differential sensing module connected across the feed/concentrate inlet and the permeate outlet lines. The internal processor digitizes the pressure differential between raw feed water pressure and clean permeate output pressure. The Ellenex Software Platform calculates exact real-time TMP values, automatically adjusting for line fluctuations to provide a clean metric of physical membrane resistance.

What process connection threads are supplied on the dual-port differential assembly?

The PM-F-W sensor assembly features standard industrial male threads, including 1/4 inch NPT/G or 1/2 inch NPT/G fittings. Technicians mount the dual-port block directly into pre-drilled tapping points or manifold tees located on the inlet and outlet headers of filter housings, sand strainers, or membrane vessels. The 316L stainless steel wet parts resist corrosive saline brine, chlorinated feed water, and aggressive CIP cleaning chemicals.

How does automated differential pressure alerting prevent permanent chemical fouling of reverse osmosis membranes?

Mineral scaling (such as calcium carbonate precipitation) and bio-fouling create a dense boundary layer on RO membrane surfaces. If left unchecked, this cake layer compacts, causing irreversible membrane damage. The PM-F-W continuously monitors differential pressure across the vessel. When differential pressure rises past the manufacturer's recommended CIP threshold, the Ellenex Software Platform triggers immediate multi-channel alerts, allowing operators to run mild chemical wash routines before permanent fouling destroys the membrane elements.

How does real-time differential monitoring optimize backwash frequencies in multimedia sand filters?

Sand and multimedia filters are often backwashed on fixed timer schedules (e.g., every 24 hours), which wastes clean backwash water if the filter bed is still clean, or allows turbidity breakthrough if the raw water source suddenly becomes dirty. By streaming continuous differential pressure telemetry to the Ellenex Software Platform, operators can initiate backwashing based on actual bed loading. Backwash valves trigger only when differential pressure indicates true filter bed saturation, maximizing water recovery and reducing pumping electricity.

Why are LPWAN wireless protocols effective for subterranean water filtration galleries and outdoor treatment plants?

Subterranean pipe galleries and outdoor water treatment yards contain heavy concrete walls, large steel tanks, and dense piping networks that block standard high-frequency Wi-Fi signals. The LoRaWAN option (-L) utilizes sub-GHz radio waves to penetrate concrete vaults and metal infrastructure, reaching central gateways kilometers away. The Cellular LPWAN option (-N) leverages NB-IoT with its +20 dB link budget improvement, guaranteeing reliable signal transmission from deep underground filtration basements.

How does the PM-F-W detect filter bypass or membrane element seal leaks?

If an internal O-ring seal fails or a filter cartridge snaps, pressurized raw water bypasses the filtration barrier entirely. This causes a sudden, steep drop in differential pressure across the vessel. The PM-F-W sensor detects this rapid pressure collapse in real time. The Ellenex Software Platform interprets the sudden delta drop as a potential membrane integrity breach, issuing urgent warning notifications so operators can isolate the damaged vessel before contaminated water enters clean water storage tanks.

What low-power battery routine allows up to 10 years of monitoring without external power supplies?

The PM-F-W unit is powered by an internal, replaceable 3.6V Lithium primary battery (LiSOCl2) engineered for reliable performance in harsh outdoor and wet plant environments (-30°C to +55°C). Low-power firmware keeps the transmitter in a deep sleep state between programmed measurement cycles. At set intervals, the device wakes up, powers the piezoresistive differential bridge, samples inlet and outlet pressures, broadcasts encrypted LPWAN telemetry, and returns to sleep. This ultra-efficient routine supports up to 10 years of continuous operation, eliminating the need to run AC power conduit to remote filter skids.
